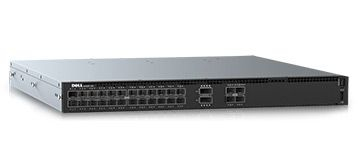

DELL S-Series S5224F-ON Managed L2/L3 1U Black

SKU

210-APHQ

Skip to the beginning of the images gallery

1U, L2/L3, 24 x SFP28, 4 x QSFP28, IO - PSU, 2 x PSU, OS10

OS10
1488Mpps
L2/L3
24 x 25GbE SFP28
4 x 100GbE QSFP28

More Information
Power over ethernet	No
Stackable	Yes
Ports type	N
SKU	210-APHQ
EAN	5397184224403
Manufacturer	DELL
Availability	In Stock
Product Family	S-Series
PDF URLs	View PDF View PDF View PDF View PDF View PDF View PDF View PDF View PDF

Reasons To Buy

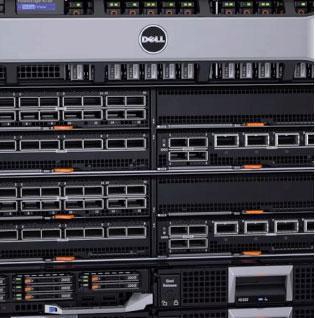

Innovative data center architectural agility with 25/40/50/100GbE switches

Gain the flexibility to transform your data centers with high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center. They offer:
- High density for 25/40/50/100GbE deployments in top-of-rack, middle-of-row, and end-of-row deployments
- A choice of S5048F-ON, S5148F-ON, S5224F-ON, S5248F-ON, S5296F-ON and S5232F-ON 25 &100GbE, S6000-ON and S6010-ON 40GbE switches and the S6100-ON 10/25/40/50/100GbE modular switch
- S6100-ON modules that include: 16-port 40GbE QSFP+; 8-port 100GbE QSFP28; combo module with four 100GbE CXP ports and four 100GbE QSFP28 ports
- An ideal solution for modern workloads and applications designed for the open networking era

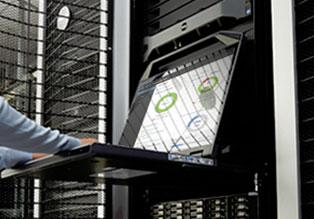

Optimized for the open networking era

Get more agility, more choices and lower costs than proprietary networks with select open-standards-based ON (open networking) switches.

- Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
- Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
- Your choice of network operating system helps simplify data-center fabric orchestration and automation.
- A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.

Ready for software-defined networking

Deploy modern workloads and applications while providing an easy on-ramp to software-defined networking (SDN).

- Support for OpenFlow v1.3 provides interoperability with industry-standard OpenFlow controllers.
- VXLAN Layer 2 Gateway enabling allows connection to hypervisor-based overlay networks.
- Third-party OS support provides an easy entry point to SDN for part or all of your production environment.

Dell EMC PowerSwitch S5224F-ON

Optimize connectivity, cost and performance with this ToR switch that features 24 x 25GbE SFP28 ports and 4 x 100GbE QSFP28 ports. The S5224F-ON also supports Open Network Install Environment (ONIE) for zero-touch installation of network operating systems.

Dell EMC: Open Networking Switch Market Leader

IT Brand Pulse 2019 Networking Brand Leaders

2017 CRN Annual Report Card: SMB Networking Winner

"Dell EMC swept the SMB Networking category this year, claiming all three subcategories." — CRN®

Navigate network complexity with Dell EMC Services

Our global team of network experts understands the complexities of IT ecosystems, including multi-vendor environments. We have the skillset and experience to not only quickly resolve performance issues but also transform your network to meet the demands of your business.

Consulting

Dell EMC network consultants provide expert guidance to help you optimize and transform the network environment for the demands of today’s multi-cloud infrastructures. Our deep infrastructure and application expertise combined with sophisticated network analysis toolsets address a wide range of network technology and process challenges.

Deployment

Leverage the Dell EMC ProDeploy Enterprise Suite to get your network installed and configured. Our experts can free your IT staff to focus on your core business, minimize downtime and give you the confidence that the job will be done right, the first time.

Support

Gain access to ProSupport technical experts who can assist with your most complex networking challenges. The Dell EMC ProSupport Enterprise Suite provides networking support around the clock and around the globe, helping your team maintain a high level of productivity.

Education

Dell EMC offers flexible training programs so your staff can build the right skills to successfully manage and utilize your network to its full potential. Through our personalized approach, your staff gets the exact training they need to improve productivity and adoption, decrease downtime, and reduce end-user support calls.

Description

Flexible architectural agility
Designed for architectural agility and flexibility to help data centers smoothly migrate to a software-designed data center.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Network
GARP VLAN Registration Protocol (GVRP)	Yes
Networking standards	IEEE 802.3
VLAN support	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	32 MB
Stackable	Yes
Memory type	SDRAM
Internal memory	16000 MB
Compatible operating systems	OS10
List of RFCs	IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power
Power connector	AC-in jack
Power consumption (max)	455 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power management	Yes
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Built-in processor	Yes
List of RFCs	IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP
Compliance certificates	RoHS
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Gigabit Ethernet (copper) ports quantity	1
USB 2.0 ports quantity	1
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
QSFP28 ports quantity	24
SFP28 ports quantity	4
Data transmission
Packet buffer memory	32 MB
MAC address table	160000 entries
Switching capacity	2160 Gbit/s
Forwarding rate	1488 Mpps
Multicast features
Multicast support	Yes

Protocols
Management protocols	CLI, SNMP, REST API’s
GARP VLAN Registration Protocol (GVRP)	Yes
Memory
Packet buffer memory	32 MB
Memory type	SDRAM
Internal memory	16000 MB
Design
Reset button	Yes
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Airflow direction	Front-to-back airflow
Indication
LED indicators	Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
System requirements
Compatible operating systems	OS10
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	434 mm
Depth	460 mm
Height	43.6 mm
Weight	9.7 kg
Logistics data
Harmonized System (HS) code	85176990
Other features
Latency	881
Power management	Yes
