ARCTIC S4028-15K - 40 mm Server Fan

SKU
ACFAN00264A
Login for pricing
40 mm, 1400 - 15000 RPM, 19.23 CFM/32.67 m³/h, PWM, 0.47 A/ 12.0 V DC
More Information
Type Fan
Suitable location Computer case
SKU ACFAN00264A
EAN 4895213703802
Manufacturer ARCTIC
Availability In Stock
PDF URLs View PDF
DESIGNED FOR CONTINUOUS OPERATION

DESIGNED FOR CONTINUOUS OPERATION

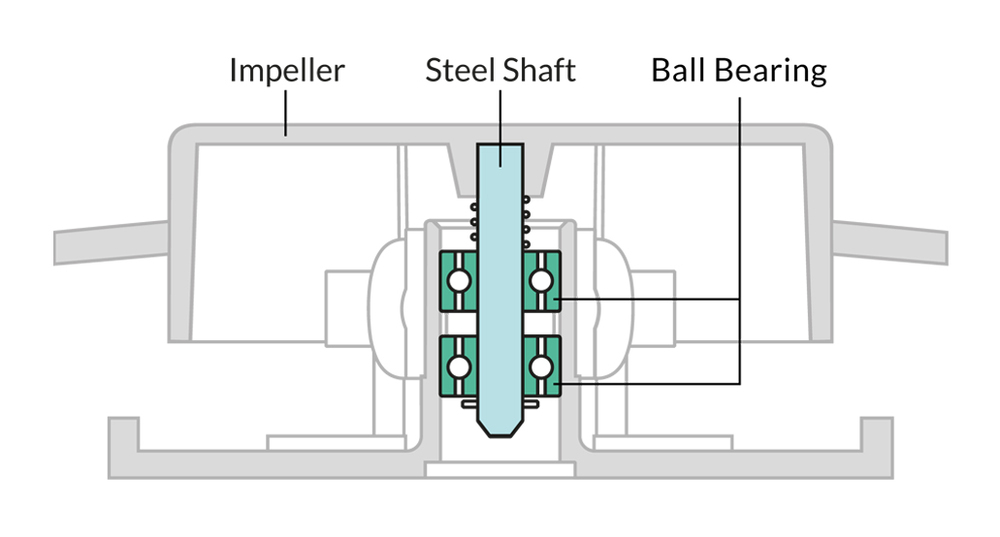

The impeller of the S4028-15K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.

FULL CONTROL WITH A WIDE SPEED RANGE

FULL CONTROL WITH A WIDE SPEED RANGE

The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.

HIGH AIRFLOW AND STATIC PRESSURE

HIGH AIRFLOW AND STATIC PRESSURE

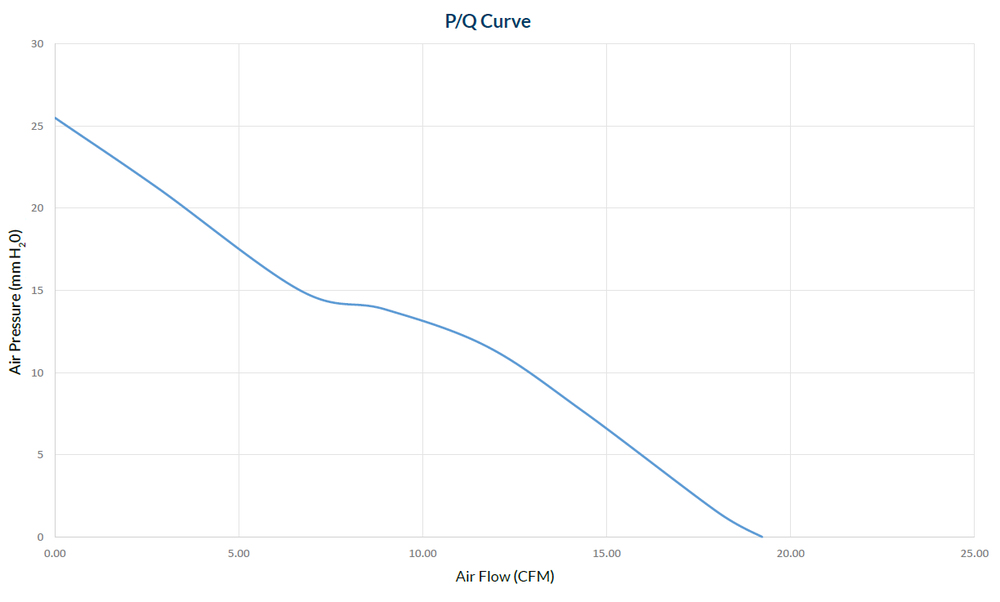

With a static pressure of 26.5 mm/H2O and a maximum airflow of 32.67 m³/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.

WIDE RANGE OF APPLICATIONS

WIDE RANGE OF APPLICATIONS

The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.

FLEXIBLE CONNECTION OPTIONS

FLEXIBLE CONNECTION OPTIONS

The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
Performance
Suitable locationComputer case
Fan connector4-pin
Pulse-width modulation (PWM) supportYes
Rotational speed (min)1400 RPM
Rotational speed (max)15000 RPM
Bearing typeFluid Dynamic Bearing (FDB)
TypeFan
Fan diameter4 cm
Maximum airflow19.23 cfm
Maximum air pressure26.5 mmH2O
Airflow32.67 m³/h
Quantity per pack1 pc(s)
Fan bearing technologyFluid Dynamic Bearing (FDB)
Design
Fan connector4-pin
Product colourBlack
Cable length0.4 m
Technical details
TypeFan
Fan diameter4 cm
Maximum airflow19.23 cfm
Maximum air pressure26.5 mmH2O
Airflow32.67 m³/h
Cable length0.4 m
Fan connector4-pin
Ports & interfaces
Fan connector4-pin
Power
Starting voltage4.5 V
Voltage12 V
Rated current0.47 A
Colour
Product colourBlack
Weight & dimensions
Package depth45 mm
Package width33 mm
Package height57 mm
Width40 mm
Package weight51 g
Depth40 mm
Height28 mm
Weight42 g
Cable length0.4 m
Packaging data
Package depth45 mm
Package width33 mm
Package height57 mm
Package weight51 g
Package typeBox
Packaging content
Screws includedYes
Number of screws4
Package typeBox
Other features
Harmonized System (HS) code84733080
Logistics data
Harmonized System (HS) code84733080
