Philips B Line 222B1TFL/00 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Black

SKU
222B1TFL/00
main product photo
Login for pricing

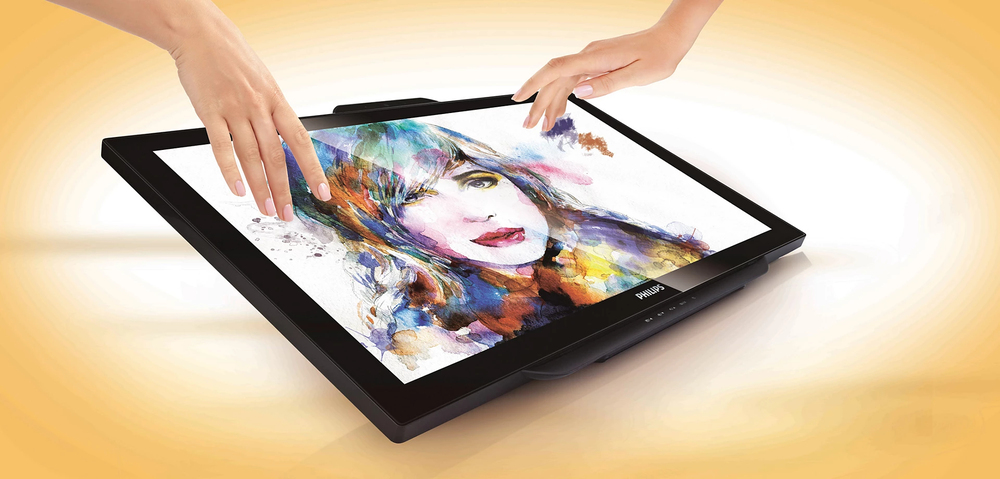

222B1TFL Open-frame touch-screen monitor
Philips open-frame touch monitor provides optimal flexibility for mounting. A sturdy, water and dust resistant, edge-to-edge design to fit your needs. Great brightness performance and anti-glare display creates outstanding picture clarity.
More Information
SKU 222B1TFL/00
EAN 8712581772932
Specification
Performance
Mean time between failures (MTBF)70000 h
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technologyYes
Flicker-free technologyYes
Component video syncSeparate sync, Sync-on-green (SOG)
Other operating systems supportedAndroid
EasyRead modeYes
Display
Screen shapeFlat
Dynamic contrast ratio marketing nameSmartContrast
Display number of colours16.78 million colours
Native aspect ratio16:9
Pixel density102 ppi
DDC/CIYes
Maximum refresh rate75 Hz
HD typeFull HD
Display technologyLED
Contrast ratio (dynamic)50000000:1

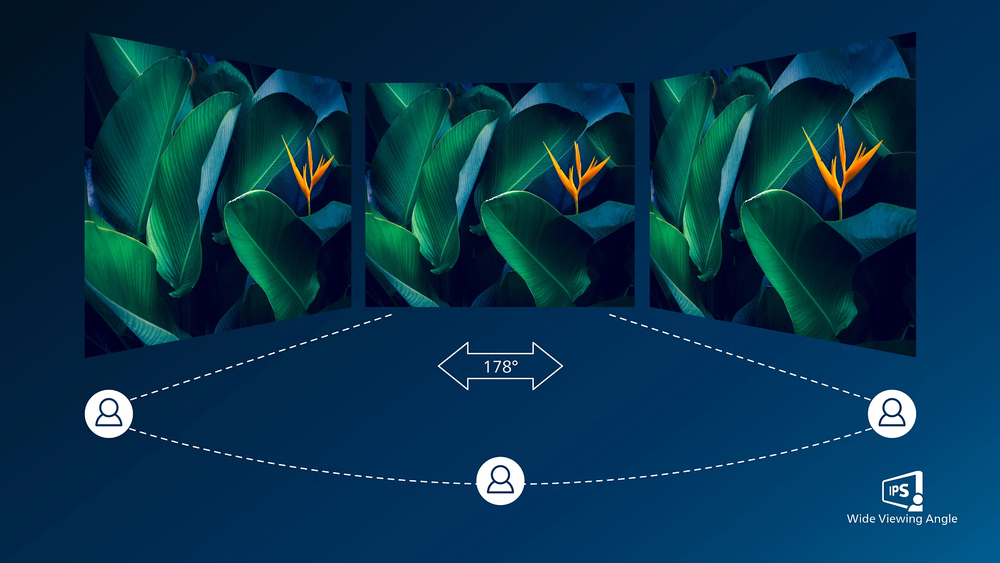

Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.24795 x 0.24795 mm
Horizontal scan range30 - 85 kHz
Vertical scan range48 - 75 Hz
Aspect ratio16:9
Viewable size, horizontal47.6 cm
Viewable size, vertical26.8 cm
Backlight typeW-LED
Display resolution1920 x 1080 pixels
Response time4 ms
Display diagonal54.6 cm (21.5")
Contrast ratio (typical)1000:1
Surface hardness7H
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Display diagonal (metric)54.6 cm
Display sRGBYes
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Haze rate5%
LED backlightYes
Display brightness400 cd/m²
Management features
On Screen Display (OSD)Yes
Number of OSD languages21
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and PlayYes
Multimedia
Built-in cameraNo
Design
Heavy metals freeHg (mercury)
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Product colourBlack
Front bezel colourBlack

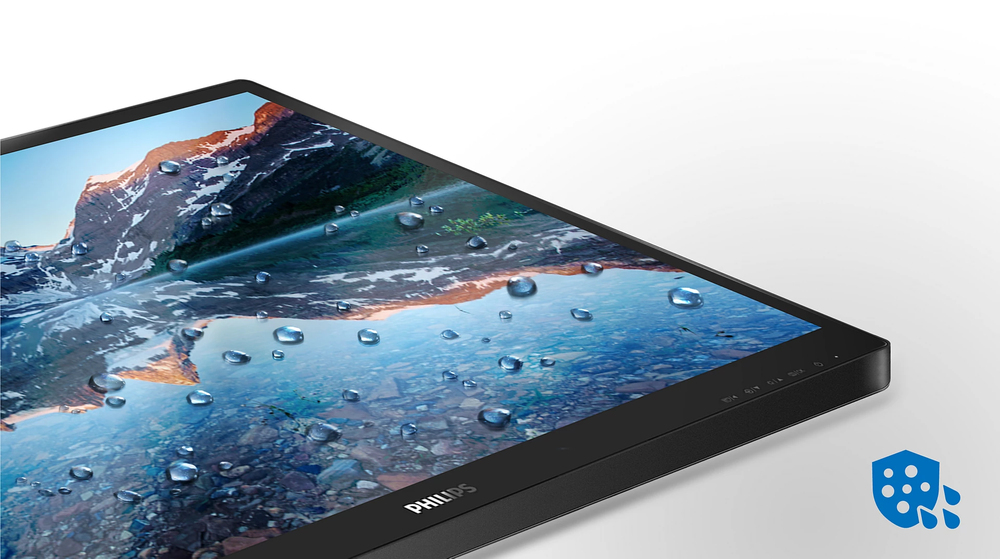

International Protection (IP) codeIP65
Mean time between failures (MTBF)70000 h
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
Number of upstream ports1
USB Type-A downstream ports quantity2
DVI portYes
VGA (D-Sub) ports quantity1
DVI-D ports quantity1

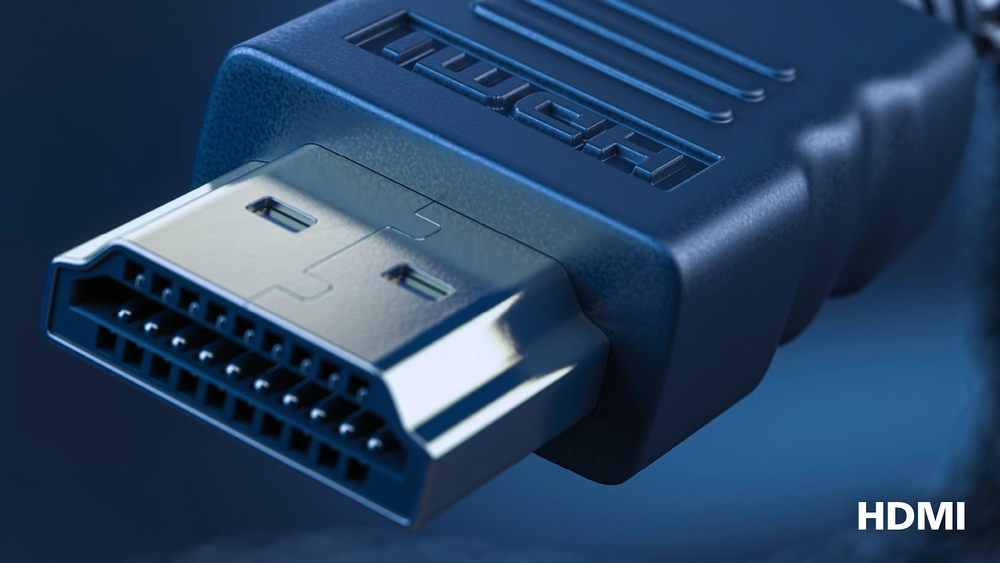

HDMI ports quantity1

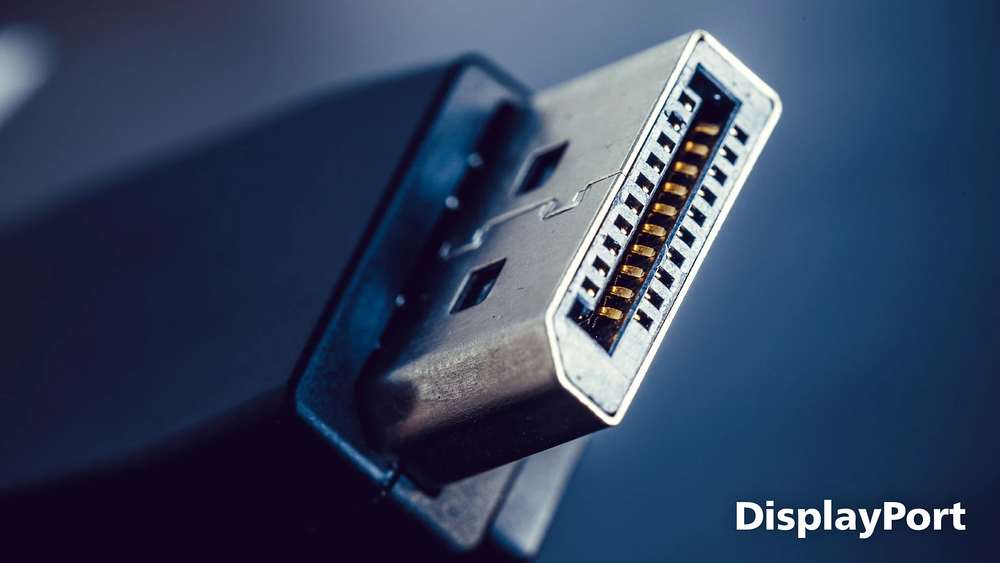

DisplayPorts quantity1
Audio outputYes
HDMIYes
HDMI version1.4
DisplayPort version1.2
USB Touch portYes
Technical details
Height (without stand)315 mm
Depth (without stand)49 mm
Width (without stand)522 mm
Cable lock slotYes
Mean time between failures (MTBF)70000 h
HDMIYes
Display viewable area (HxV)476.064 x 267.786 mm
Product colourBlack
Picture enhancementSmartImage
Recyclable packaging material100%
Regulatory ApprovalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
Front bezel colourBlack
Doesn't containPVC/BFR, Mercury
Compliance certificatesRoHS
Power supply typeExternal
Touch methodStylus, Finger, Glove
Surface hardness7H
EasyRead modeYes
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Bundled softwareSmartControl
Ergonomics
Wall mountableYes
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
LED indicatorsOperation, Stand-by
On Screen Display (OSD)Yes
Number of OSD languages21
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and PlayYes
Height adjustmentNo
Cable lock slot typeKensington
Palm rejection area30 x 30 mm
Power
Power supply typeExternal
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.3 W
Power consumption (typical)20.1 W
Power consumption (off)0.3 W
Power consumption (PowerSave)11.2 W
Energy efficiency class (SDR)E
European Product Registry for Energy Labelling (EPREL) code424363
Operational conditions
Non-operating altitude0 - 12192 m
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Operating altitude0 - 3658 m
Weight & dimensions
Height (without stand)315 mm
Depth (without stand)49 mm
Width (without stand)522 mm
Weight (without stand)4.91 kg
Package width595 mm
Package depth121 mm
Package height390 mm
Package weight7.54 kg
Packaging data
Package width595 mm
Package depth121 mm
Package height390 mm
Package weight7.54 kg
ManualYes
Cables includedHDMI, DisplayPort, USB Type-A to USB Type-B, AC
Bundled softwareSmartControl
Packaging content
ManualYes
Cables includedHDMI, DisplayPort, USB Type-A to USB Type-B, AC
Bundled softwareSmartControl
Sustainability
European Product Registry for Energy Labelling (EPREL) code424363
Doesn't containPVC/BFR, Mercury
Indication
LED indicatorsOperation, Stand-by
Other features
Heavy metals freeHg (mercury)
Mean time between failures (MTBF)70000 h
Display viewable area (HxV)476.064 x 267.786 mm
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Picture enhancementSmartImage
Recyclable packaging material100%
Regulatory ApprovalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified
Touch methodStylus, Finger, Glove
EasyRead modeYes
International Protection (IP) codeIP65
Compliance certificatesRoHS
Energy efficiency class (old)E
Height (without stand)315 mm
Depth (without stand)49 mm
Width (without stand)522 mm
HDMIYes
Surface hardness7H
Power supply typeExternal
ManualYes
TouchscreenYes
Number of simultaneous touchpoints10
Front bezel colourBlack
Certificates
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, CU-EAC, EAEU RoHS, TUV Ergo, TUV/GS, TUV Eye Comfort certified
Logistics data
Harmonized System (HS) code85285210
