iiyama ProLite T2238MSC-B1 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Black
SKU
T2238MSC-B1
Login for pricing
21.5” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

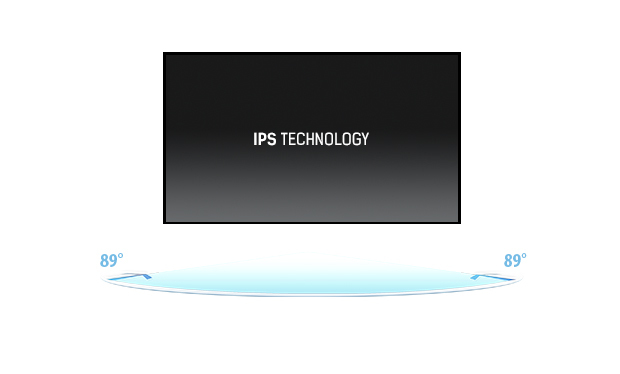

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
Speakers
This LED monitor is equipped with two high quality stereo speakers.
The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 600 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.249 x 0.249 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 47.9 cm |
| Viewable size, vertical | 26 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 600 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.5 cm |
| Display brightness | 525 cd/m² |
| Second display effective viewing area | 479 x 260 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Low Blue Light technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP1X |
| Housing material | Metal |
| Glass thickness | 3.6 mm |
| Protection features | Waterproof |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| AC (power) in | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Technical details | |
|---|---|
| HDMI | Yes |
| Product colour | Black |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 525 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 479 x 260 mm |
| Weight (with stand) | 6.8 kg |
| Touch method | stylus, finger, glove |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1530172 |
| Weight & dimensions | |
| Width (with stand) | 512.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 353.5 mm |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (bottom) | 1.98 cm |
| Weight (with stand) | 6.8 kg |
| Package width | 625 mm |
| Package depth | 150 mm |
| Package height | 430 mm |
| Package weight | 8.1 kg |
| Width | 512.5 mm |
| Weight | 6.8 kg |
| Height | 353.5 mm |
| Depth | 239.5 mm |
| Packaging data | |
| Package width | 625 mm |
| Package depth | 150 mm |
| Package height | 430 mm |
| Package weight | 8.1 kg |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1530172 |
| Sustainability certificates | ErP |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 525 cd/m² |
| Active display area (W x H) | 479 x 260 mm |
| USB ports quantity | 2 |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Touch method | stylus, finger, glove |
| International Protection (IP) code | IP1X |
| Width | 512.5 mm |
| Weight | 6.8 kg |
| Height | 353.5 mm |
| Depth | 239.5 mm |
| Protection features | Waterproof |
| Second display effective viewing area | 479 x 260 mm |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Control panel | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Display brightness (peak) | 600 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Package type | Box |
| Front bezel colour | Black |
