iiyama ProLite TF1633MSC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD Touchscreen Black
SKU
TF1633MSC-B1
Login for pricing
PROLITE TF1633MSC-B1 15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology
- Edge to edge glass
- projective capacitive
- IPS
- HDMI x1
- DisplayPort x1
- USB HUB

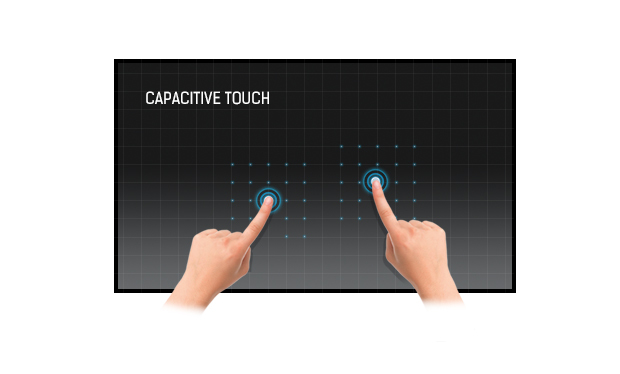

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

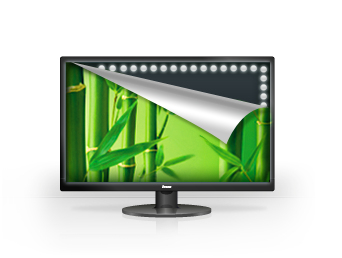

LED-backlit
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO 2 emission into the environment making this LCD a true ECO-Friendly product.
The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Display | |
| Display brightness (typical) | 385 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| Technical details | |
|---|---|
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Power supply type | External |
| Touchscreen | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 12 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1629699 |
| Weight & dimensions | |
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Weight (without stand) | 2 kg |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 3.9 kg |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 3.9 kg |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Power adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Power adapter included | Yes |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1629699 |
| Other features | |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| International Protection (IP) code | IP54 |
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen | Yes |
| Package type | Box |
| Certificates | |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
